ARM/ JTAG/ J-Link 20-Pin to TC2030 6-Pin Programmer Adapter

ARM/ JTAG/ J-Link 20-Pin to TC2030 6-Pin Programmer Adapter
ARM/ JTAG/ J-Link 20-Pin to TC2030 6-Pin Programmer Adapter
  • 48.00
    excl. VAT, excl. delivery
  • Variant
    ARM JTAG 20 Pin to TC2030 Programmer Adapter
  • SKU
    arm-jtag-20-tc2030-adapter
  • Quantity
  • In stock

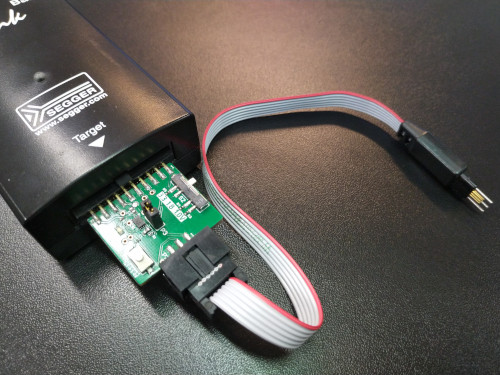

The 20-Pin ARM/ JTAG header to the Tag Connect TC2030 adapter provides Vtarget coming from the 5 V Supply Pin 19 as specified in the TC2030 docs to the target whereby the voltage level is adjustable. The target voltage level is also fed into Vref (Pin 1) in order to make the programmer select the correct voltage level for the target. As such it is a mixture of the J-Link Target Supply Adapter and the J-Link 6-Pin Needle Adapter with the difference that Vref is provided by the adapter. The adapter is particularly useful for battery powered devices because it allows programming/ debugging and measurement of the target current to calculate the power consumption at the same time.

Highlights

  • 20-Pin ARM/ JTAG/ J-Link to 6-Pin TC2330 adapter
  • Low noise LDO based target power supply with a maximum current of 800 mA
  • Adjustable supply voltage 3.3 / 1.8 / 1.0 V
  • Reset button to reset target
  • Current measurement via circuit breaker

TC2030 Pinout

  • 1 VCC Target
  • 2 SWDIO/ TMS
  • 3 nRESET
  • 4 SWCLK/ TCK
  • 5 GND (also connected to GNDDetect)
  • 6 SWO/ TDO

Target Voltages

  • 3.3 V / 400 mA max.
  • 1.8 V / 200 mA max.
  • 1.0 V / 150 mA max.

Specifications

Maximum output Power 1.4 W
Maximum output Current 400 mA
Dimensions WxHxD 27 x 23 x 5 mm
Weight 15 g
Temperature Range (environment) -40 to 70° C maximum
-40 to 50° C recommended
Host side connector 20-pin, 2.54mm pitch
Target side connector 6-pin, 2.54mm pitch
Compativility Segger J-Link, ST-Link, Other Cortex-M Programmers
Certifications CE
Materials RoHS, REACH

Usage

  1. Install the SEGGER J-Link software onto your machine.
  2. Start J-Link Commander, which can be found under “Start → Programs → SEGGER → J-Link”.
  3. Enter the following command: power on perm.
  4. Plug in the adapter to the J-Link: The Power LED D1 on the adapter should be on.
  5. Select the target voltage using slide switch S2.
  6. Plug in the target and start working.
